The Series 07 control valves has been developed to provide a cost effective solution to the “final control element” used in modern plants. The valve design combines the successful high integrity features of the series 07 with a high capacity, economic design philosophy as well as excellent control.

Performance :

  • High Cv to body size ratio.
  • Streamlined flow passages to optimize capacity. High Cv to valve weight ratio.
  • Excellent flow control rangeability.

Design Flexibility :

  •  Modular construction design available with a range of different connections and styles.
  •  All trim components removable from the top for easy of maintenance.
  •  Wide range of supplementary noise control options.
  •  Inherently characterized trim offered in equal percentage, linear, quick opening and modified-parabolic (options).
  •  Multi trim sizes available.
  •  Full range of body and trim material options.
  •  Fully rationalized and interchangeable features.

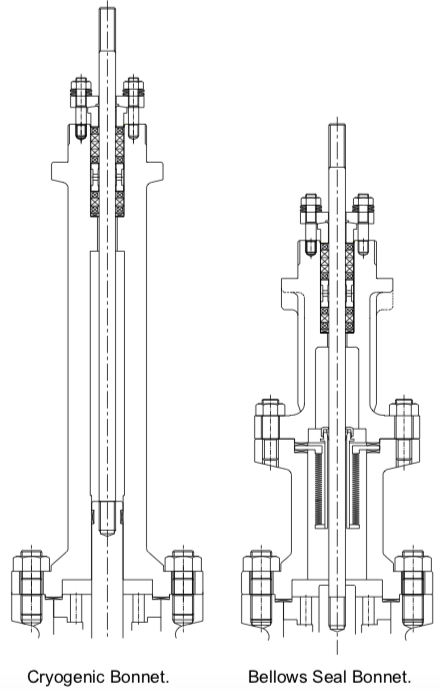

  •  Full range of bonnet and packing designs to suit various temperatures and fluids.

Design Intergrity:

  • Heavy duty top guiding with no bottom guide to obstruct seat bore and potentially trap debris.
  • Large diameter stems.
  • Clamped bonnet and seat ring gaskets are fully retained for easy maintenance.

Quality Manufacturing :

  • Rigorously tested to ensure specified performance on site.
  • Quality assurance system in accordance with ISO 9001.
  • Optional full NACE MR-01-75 certification.


Guide
to Trim Options Available

Modular Design

  • Series 07 has been designed around a modular manufacturing concept. using this philosophy, a centre body module selected to most suit the specified flow conditions and operating data, is combined with end connection size/rating, selected to support that module. this design feature allows not only the selection of full size ends, to offer oversize end connections to suit a particular requirement.

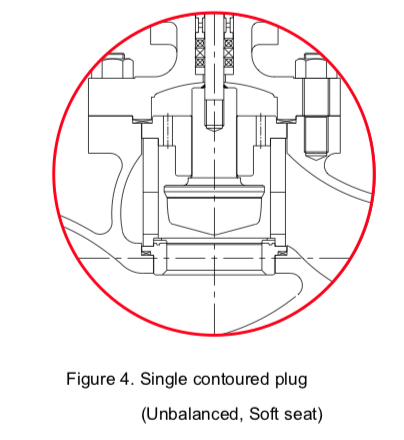

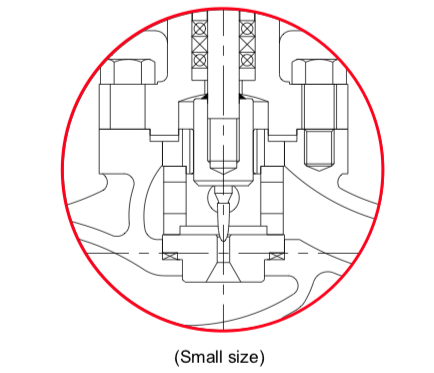

Unbalance Trim

  • Single contoured unbalance port(SP) are up to 6”. Ports are guided by heavy guide.

Balance Trim

  • Pressure balance ports are used to reduced the thrust on the port.
    Single contoured balance port ( BP) are over 2” are standard and under 2” are available for specific applications.
  • Double contoured balance port (DP) are over 2” for high pressure drop.
  • Soft seats are used in application requirement ANSI class VI
    ‘ BUBBLE-TIGHT ‘ shutoff and FIRE SAFE design. It’s design consist of an elastomer sandwiched between two metal piece, insert retainer and metal seat. the soft seat can be done by installing the insert and soft seat between seat retainer and seat. therefore it can used for fire safe function.

Velocity Limitations

  • In selecting a valve for either a liquid or gas / vapor application one of the major considerations is the effect of fluid velocity. high velocity
    could lead to operational problems including erosion, excessive vibration and instability. The following tables indicate the maximum recommended velocity values for liquid and gas / vapor services.

Definitions:

  • Linear
    Flow is directly proportional to valve lift.
  • Equal %
    Flow changes by a constant percentage of its instantaneous value for each unit of valve lift.
  • Quick Opening
    Flow increases rapidly with initial travel reaching near its maximum at a low lift.
    Modified Parabolic
    Provides fine throttling action at low valve lift and Approximately a linear characteristic for upper portions of travel.
